Roll-Out Shelves
ShelfSource offers a wide range of Roll-Out Shelves; all Roll-Out Shelf boxes are custom built for each job and are normally available to ship within two to three weeks of order confirmation.

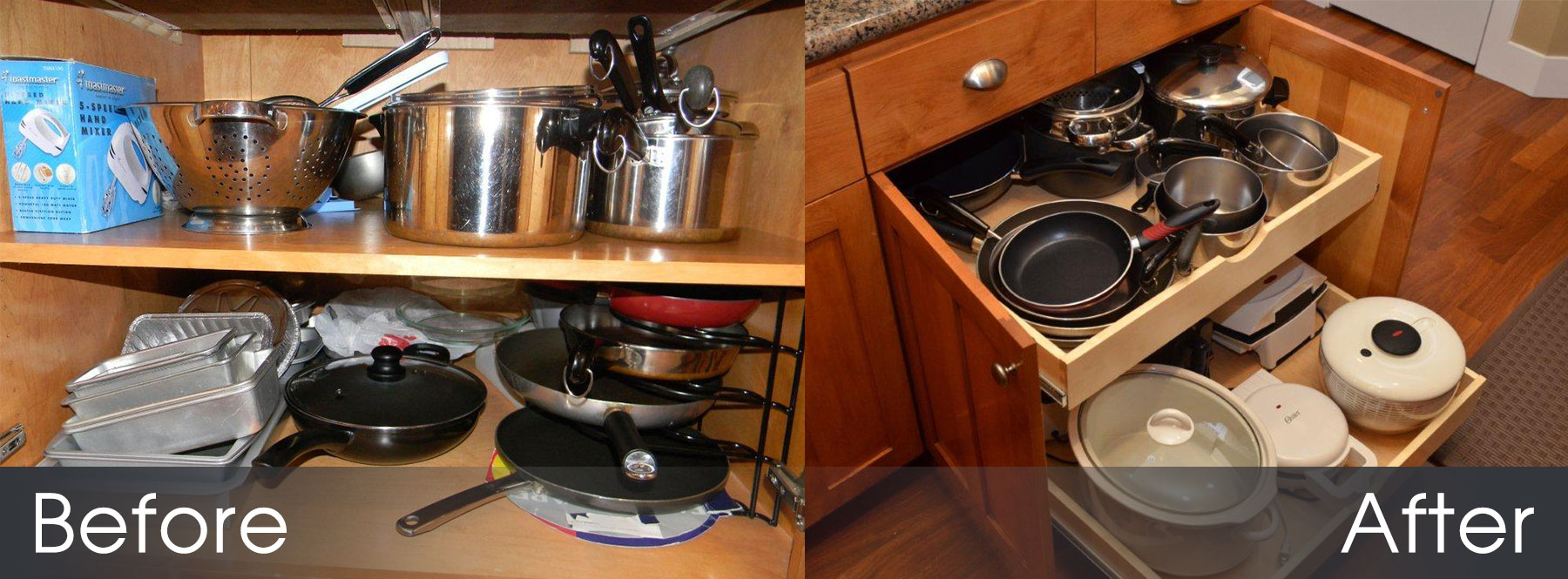

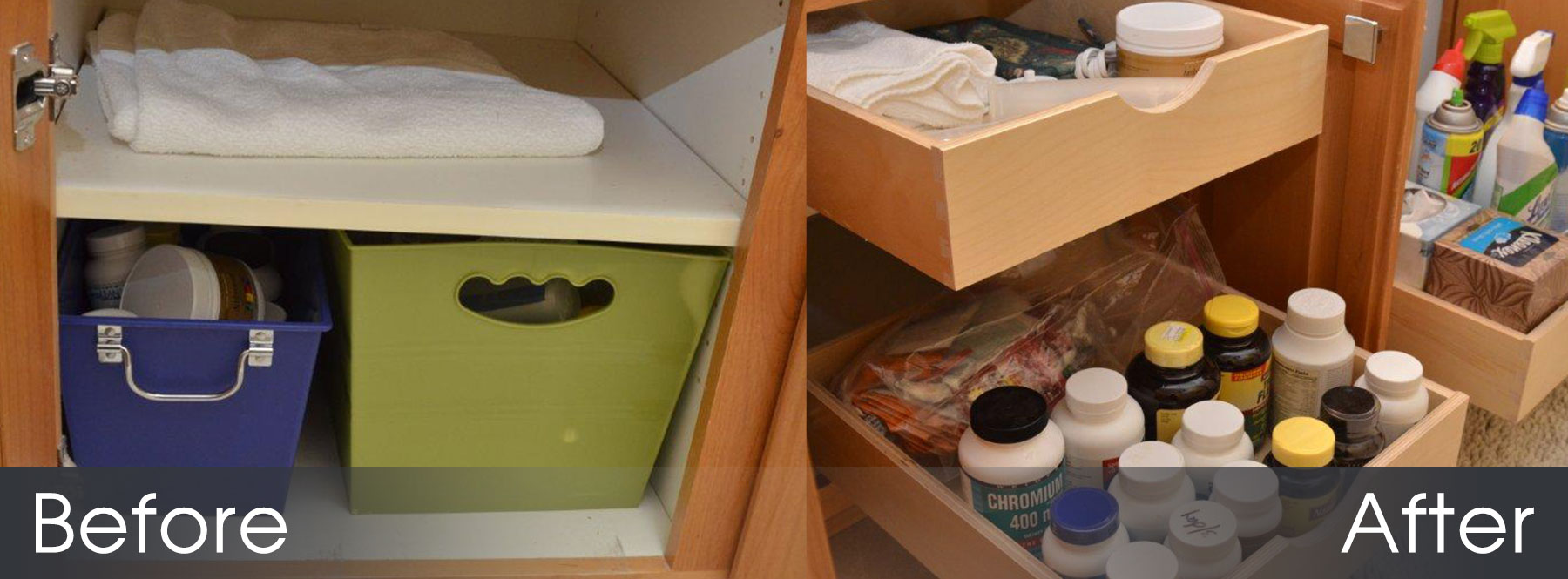

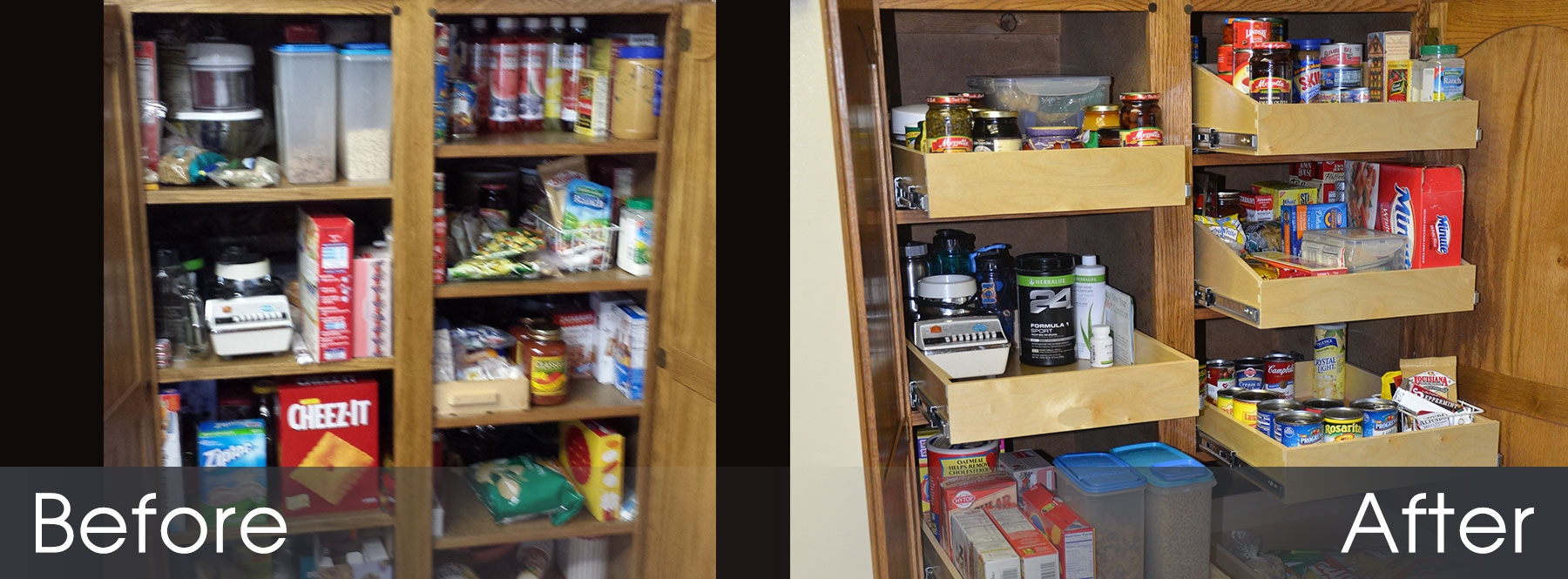

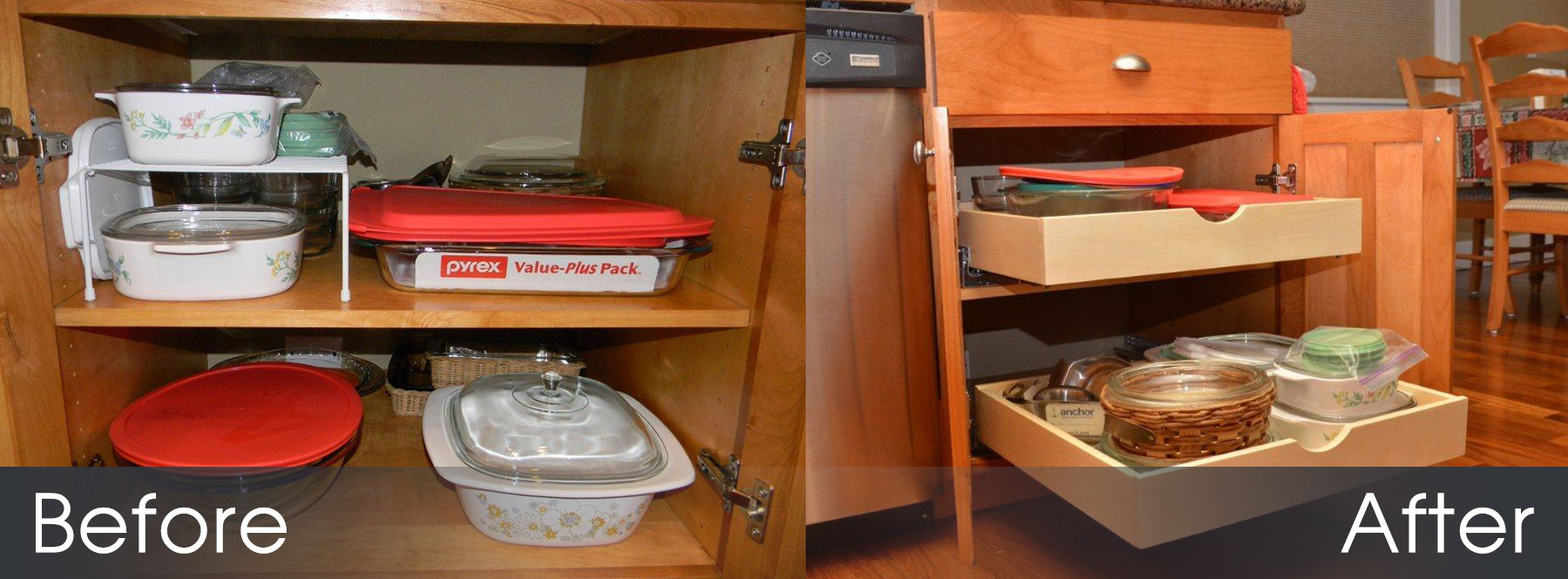

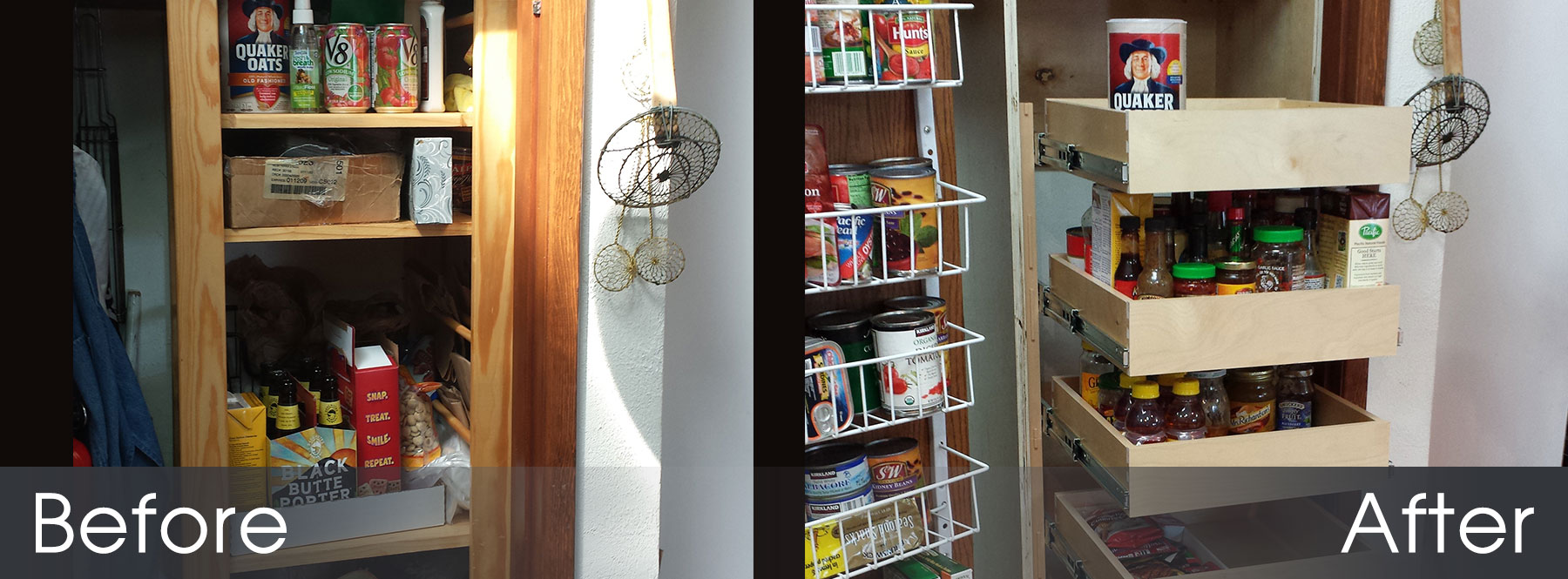

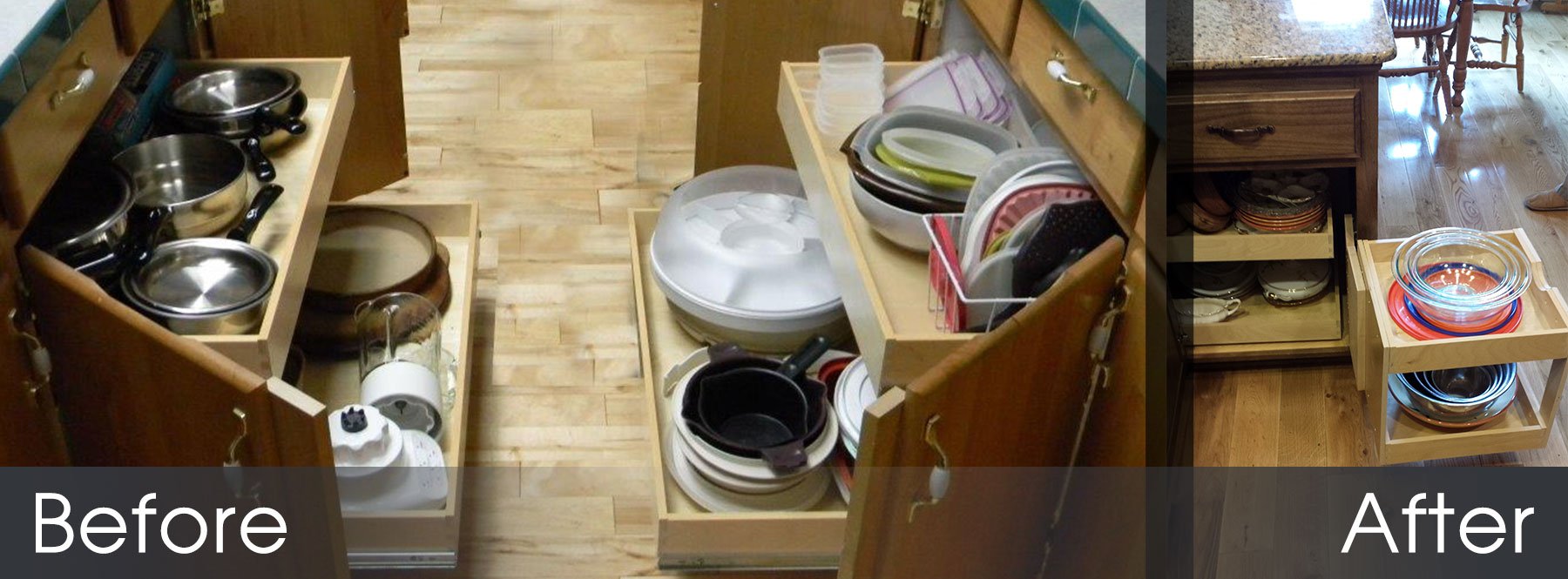

Bring those hard to reach items to a safe and reachable place. Such items as cooking and baking ingredients, pots and pans, cookie sheets and frequently used mealtime products can be easily rolled out of the cabinet and reached without a lot of bending and stooping in dangerous positions.
Once a roll out shelf is installed, it acts like a drawer inside of the cabinet so that the user can simply grab the front of the roll-out by pulling it towards them giving them full access to everything stored inside the roll-out. Now items stored in the new roll out can be well organized and much easier to locate. Again reducing the time spent in an unsafe and uncomfortable position.
All in all roll-out shelves can add much needed additional storage, safety ,and organization in your existing kitchen and for that matter any area in your home such as bathrooms , laundry rooms , or built in closets.
A quality built roll-out shelf will last the life of your kitchen. A good quality roll out guides will also ensure that the roll out will function properly for many years to come.

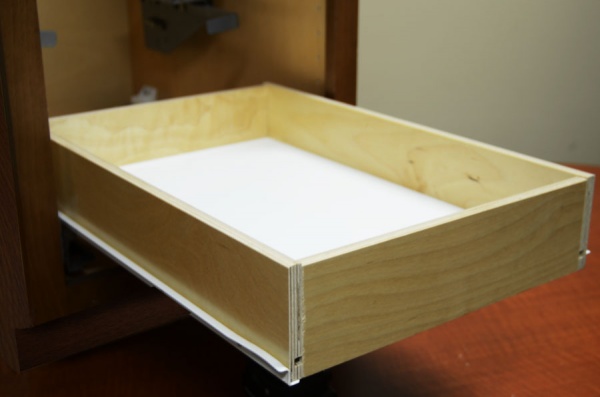

Standard Roll-Out 9 ply Box
Our Standard 9 Ply Birch roll out shelf comes 3-3/4" tall, 21" deep and up to 24" wide with melamine bottom. Top edges are finished with clear transfer foil. Corners are joined with doweled construction/ Comes standard with ¾ extension side mount guides.
Available Upgrades
- Height upgrade to 6"
- Depth upgrade N/A
- Width upgrade up to 36"
- Guide upgrade N/A
Traditional 9 ply Birch Roll Out Shelf
The next box that is available in the ShelfSource series is our Traditional 9ply box with dovetail construction. The 9ply box comes with standard Full Extension Side Mount guides but can be upgraded to full extension soft close guides. The bottom deck of this is 1/4" plywood, the box itself is finished in Urethane with Aluminum oxide. Top edges are banded for a finished solid wood look. It is offered in 3-3/4" and 6" high side.
Baltic Birch is a popular wood best known for its light color, strength, and multi-ply construction. Baltic Birch closely resembles Maple and because of its neutral color, coordinates well with most cabinet finishes. Baltic birch plywood is highly prized for its consistent light grain and strength.
Available Upgrades
- Height upgrade to 6"
- Depth upgrade to 24"
- Width upgrade up to 36"
- Guide upgrade to Full Extension Undermount Guides with Soft Close
- Angled side upgrade to Full Angle and Half Angle up to 6" in height.
- Note: when angles are applied to Traditional box the top edges will be finished with Clear Transfer Foil.
- Box Bottom upgrade to 3/8" bottom
Elite Roll-Out Shelves
At ShelfSource we understand that not only is high quality construction and performance important, we know that style and design can be equally as important to today's consumer. With this in mind we have taken Roll-Out shelving to the next level with our solid wood Elite collection. Our solid wood boxes are available in, Aspen, Oak, Cherry and Walnut. These boxes are beautifully constructed with dovetailed corners, front scoop detail, bullnose top edges and finished with clear urethane to preserve the natural beauty of the wood. All boxes come with standard with full extension soft close guides. All of the Elite collection roll-outs are available in 3-3/4" high and 6" high side.
Elite Roll-Out Shelf: Aspen
Aspen has a straight and even grain and is blond in color. Aspen boxes have smooth, uniform texture and appear to have little or no grain pattern. Aspen wood resembles Maple and because of its neutral color, coordinates well with most cabinet finishes.
Available Upgrades
- Height upgrade to 6"
- Depth upgrade to 24"
- Width upgrade up to 36"
- Guide upgrade N/A
- Angled sides upgrade to Full Angle, Half Angle and Scalloped Angle up to 10" in height.
- Box Bottom upgrade to 3/8" bottom
Elite Roll-Out Shelf: Oak
Red Oak is hard, strong and pink to reddish-brown in color. The grain pattern of red oak Is highly variable, which adds to the beauty of the finished product. Red Oak roll-out shelves have a sleek finished look and are highly durable. The streaks, or rays, of red oak are distinctive and prominent giving finished roll-out shelves very individual look.
Available Upgrades
- Height upgrade to 6"
- Depth upgrade to 24"
- Width upgrade up to 36"
- Guide upgrade N/A
- Angled sides upgrade to Full Angle, Half Angle and Scalloped Angle up to 10" in height.
- Box Bottom upgrade to 3/8" bottom
Elite Roll-Out Shelf: Cherry Wood
Cherry wood is perhaps one of the most prized finished hardwoods in America. Natural cherry starts out as a much lighter wood but over time and exposure to sunlight will change to a rich reddish brown color. Cherry wood is also popular because of its grain contrasts. The light and dark grain contrast is due to the trees natural growth pattern. Wood that grows closer to the center of the tree is darker then wood that is located near the bark of the tree. These contrasting wood colors only add to the beauty of our finished Cherry roll-out box.
Available Upgrades
- Height upgrade to 6"
- Depth upgrade to 24"
- Width upgrade up to 36"
- Guide upgrade N/A
- Angled sides upgrade to Full Angle, Half Angle and Scalloped Angle up to 10" in height.
- Box Bottom upgrade to 3/8" bottom
Elite Roll-Out Shelf: Walnut
Walnut wood is typically much harder than other types of wood. Due to the hardness of the wood, walnut wood boxes are typically very sturdy, and much more resistant to dings and scratches. Natural walnut wood boxes are composed of luxurious chocolate browns that will add beauty to any cabinet and fill it with rich color. The grain pattern of walnut is mostly straight but it also exhibits the wavy grain that is so highly desired among homeowners.
Available Upgrades
- Height upgrade to 6"
- Depth upgrade to 24"
- Width upgrade up to 36"
- Guide upgrade N/A
- Angled sides upgrade to Full Angle, Half Angle and Scalloped Angle up to 10" in height.
- Box Bottom upgrade to 3/8" bottom

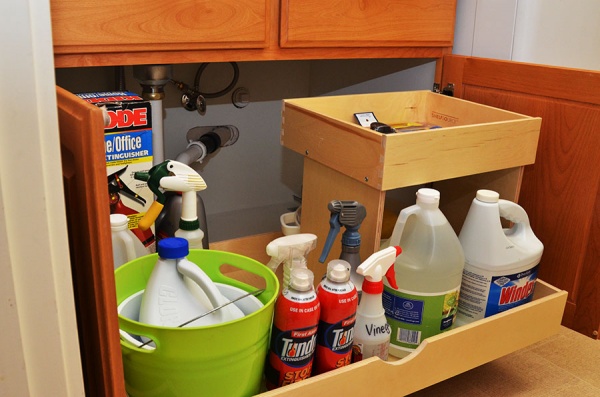

Under Sink Roll-Out Shelves
Add a new level of convenience to your under-sink storage by adding our under sink riser to a roll-out shelf. The under-sink riser creates an upper level of store for those items that you use the most and allows you access to those items without having to get down on your hands and knees to find them.
This additional 8" wide and 21" deep shelf is constructed out of 9 ply Birch with dovetail corner joints and is just the right size to clear most standard sink pluming. Includes shelf box and box mounting material.
